CSR space

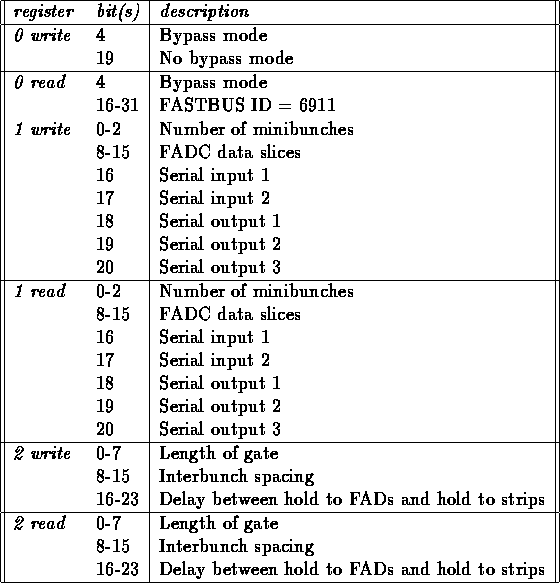

LURFB is using four CSR registers, CSR0, CSR16, CSR17 and CSR18. The CSR18 is used to reboot the DSP.
