Status registers

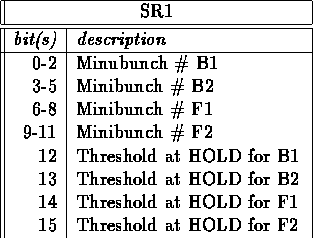

There are three 16 bit status registers (SR1, SR2 and SR3).

All the above signals must be stable during the DSP readout, except READOUT which is latched at rising edge.
