Auxilliary backplane

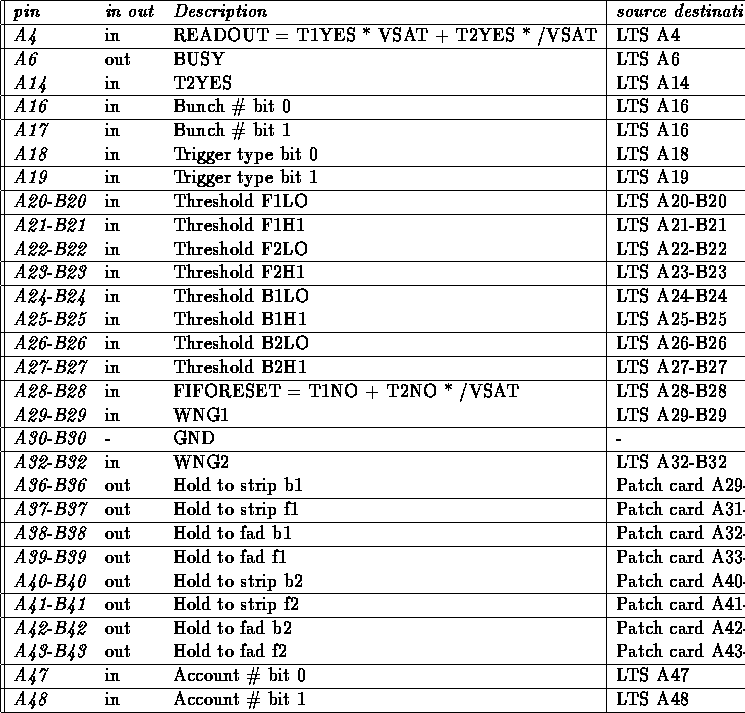

The auxilliary backplane is used to get trigger and event information from the VSAT Local Trigger Supervisor (LTS). The signals and the pin numbers are given in table. Those signals with only one pin given are single ended ECL, while the others are differential ECL.
