STIC single arm triggers

The STIC single arm triggered events can be used to measure the rate of off-energy electrons in STIC [5]. This trigger requires a shower with an energy greater than $\sim$ 0.25 ^. E_beam in one of the two calorimeters. The trigger is dynamically downscaled to a constant trigger rate, and this has to be taken into account in the estimation of the rate. Figure 12 shows the rate of off-energy electrons in STIC normalized to luminosity. In 1997 the typical rate of off-energy electrons in STIC was 8 ^. 10⁶ per pb ^-1. The rate has decreased each year and it is now < 2 ^. 10⁶ per pb ^-1.

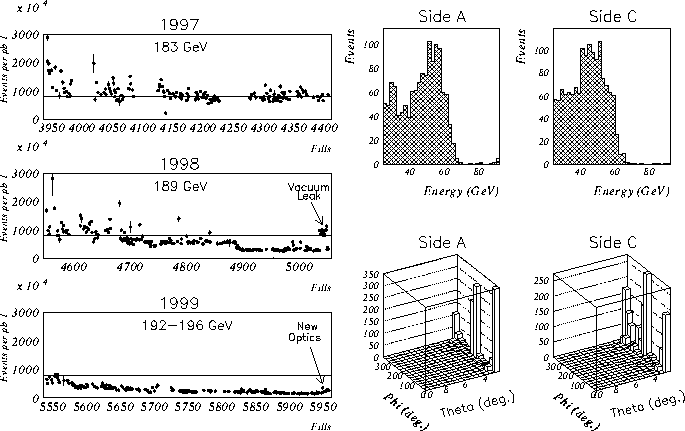

Figure: 12 Left: The number of off-energy electrons in STIC per pb^-1. Only the first 400-500 high energy fills during each year are shown. Right: The energy and theta-phi distributions of events recorded by the STIC single arm trigger. Data from fill 5941 were used.

The energy and angular distributions of the off-energy electrons in STIC are shown in Figure 12 for 1999B data from fill 5941. Most of the background has a large energy and is in the horizontal plane, which results in peaks in the theta-phi distribution. This horizontal background component can, however, be removed by a cut on the polar angle since it does not extend much above 3^o.
